Smart Warehouse Management (WMS)

Full inventory visibility, synchronized with production

MSF WMS gives you real-time control of every pallet, box and part. Smart put-away, guided picking and automatic replenishment keep production supplied and inventory lean.

Request a DemoStart a PoC

What is a warehouse management system (WMS) for manufacturing?

A warehouse management system (WMS) tracks every pallet, box and part by location, lot and movement, and directs put-away, picking and replenishment. Meta Smart Factory's WMS is built for production: it reads the production schedule, feeds materials to workstations just in time and books consumption back to the ERP automatically from PLC counts, with barcode or RFID scanning and FIFO/FEFO lot traceability.

Key Features

Real-time stock visibilityEvery item, location and movement tracked live with barcode/RFID scanning.
Smart put-away & pickingThe system chooses optimal locations and picking routes, so picking is faster and has fewer errors.
Production line feedingMaterials are staged and delivered to workstations exactly when the schedule needs them.
FIFO / FEFO & traceabilityFull lot and serial traceability with automatic expiry and rotation rules.
Cycle countingContinuous inventory counting without stopping the warehouse makes audits painless.

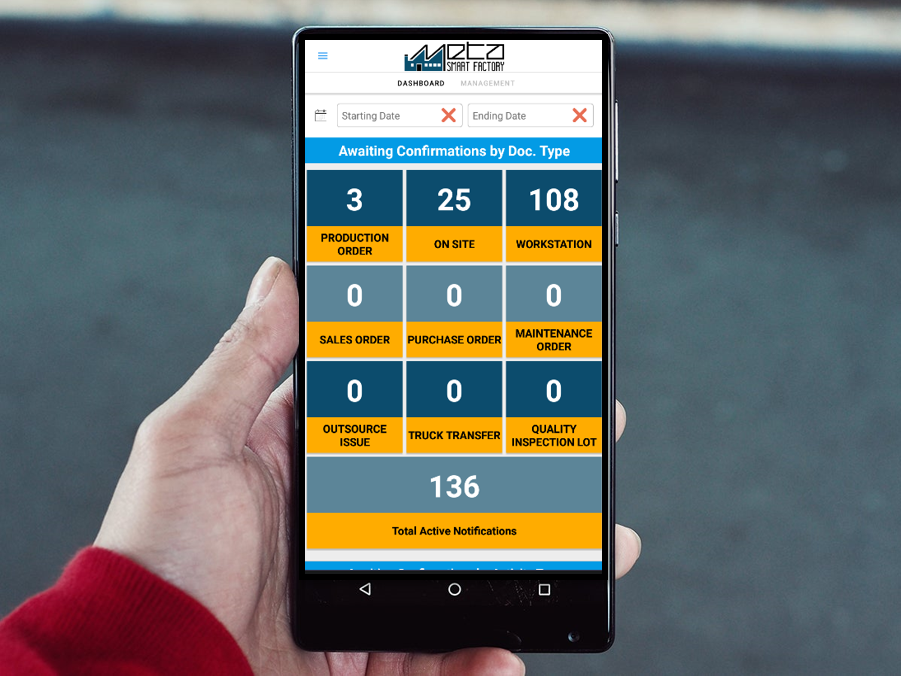

Mobile terminalsWarehouse staff work with handheld scanners and the same intuitive MSF interface.
Smart Reservation EngineWork order received → BOM exploded → FIFO LOT allocated → location matched → stock locked → dispatcher task created. Fully automatic, on a configurable interval, zero human triggers.
Real-time consumption enginePLC reports 100 units produced → BOM rule deducts 25 kg material → ERP goods movement posts automatically. Stock is accurate in real time, with no wait for the end of the shift.
Automated finished-goods flowPallet full → label printed, dispatcher notified and ERP document staged: four actions triggered simultaneously by one PLC signal.
Production-integrated, not reactiveTraditional WMS asks 'what's in stock?' MSF answers 'which station needs material in 5 minutes and where should the forklift go NOW?'
Multi-site and consignment stockSeveral warehouses run on one item master and one scannable location scheme, and consignment stock held at a customer or supplier is still counted as yours.
Recorded FIFO overrides with reasonsWhen a blocked pallet forces a picker off the FIFO proposal, the override is allowed but logged against the lot with a reason, so frequent overrides point at the put-away rule.
Deep diveRunning a Factory Warehouse: Staging, Kitting, Line FeedingAlmost everything written about warehouse management systems was written for distribution, and it transfers badly. A distribution centre's customer is an order with a cut-off: released orders do change, but the change is a reshuffle inside a wave against the same carrier departure. A factory WMS serves a machine that starts an operation at a specific minute, draws material while it runs, hands back what it did not use, and gets resequenced at nine in the morning, moving dozens of dependent deadlines at once.Read the full article →

At a Glance

Barcode/RFIDEvery movement scanned
FIFO/FEFOLot and serial traceability
PLCCounts post consumption to the ERP
Multi-siteOne item master, consignment stock included

Technical Specifications

Deployment
The same module either way: hosted SaaS, shared or single-tenant, or a full platform install in your own data center.
Warehouse hardware
Standard barcode scanners and label printers; RFID optional for high-volume flows; handheld terminals run the same MSF interface.
Network
Continuous Wi-Fi coverage, surveyed at rack height with the racks full and including cold stores, high racking and metal-clad bays, before hardware is ordered.
MES / APS
The warehouse sees the production schedule and feeds lines just-in-time, while consumption is booked back automatically.
ERP integration
Goods movements post to the ERP automatically; item master, BOM and unit of measure normally stay in the ERP and are received by the WMS.
Controller data
Consumption and finished-goods actions are triggered by PLC good-count and pallet-full signals through the MSF machine layer, with no manual confirmation needed.
Traceability
Full lot and serial traceability with FIFO/FEFO and expiry rules; overrides to the FIFO proposal are allowed but recorded against the lot with a reason.
Master data ownership
The WMS owns location, movement and lot identity; the create/read boundary with ERP and MES is agreed field by field before the interface is built.

See It Running: Demo Videos

Warehouse Management System in Action: Barcode Tracking & Forklift Tasks
Warehouse Management System in Action: Barcode Tracking & Forklift Tasks
From Machine to Shipment
From Machine to Shipment
Deep diveWhy a Distribution WMS Breaks in a Factory, and What FitsManufacturing warehouses serve production lines, where a distribution warehouse serves customer orders. That single difference changes what the system has to do. What an intelligent WMS covers, and where distribution-built software breaks.Read the full article →

Frequently Asked Questions

Does WMS integrate with MES and APS?

Yes. The warehouse sees the production schedule and feeds lines just-in-time, while consumption is booked back automatically.

Do I need special hardware?

Standard barcode scanners and label printers are enough; RFID is optional for high-volume flows.

Can it manage multiple warehouses?

Yes, including transfers between sites and consignment stock at customers or suppliers.

Do I need a WMS if my ERP already tracks inventory?

If material sits in fixed places, moves rarely and is counted once a year, the ERP is enough. What makes a WMS necessary is lot or expiry rules, several locations holding the same item, or people walking the aisles to find material; that last one usually decides it. The ERP knows quantity by item and plant, while the WMS knows which pallet is in which location and who moved it.

Can a WMS run without PLC integration?

Yes. Receiving, put-away, picking, cycle counting and lot traceability run entirely on scans and never touch a controller. What you lose is the consumption engine, which backflushes components from the BOM each time the PLC reports a good count instead of waiting for order confirmation. That narrows the window in which stock is stale, it does not make stock true, because scrap, over-issue and material variance still need their own posting.

What has to be in place before a WMS go-live?

A location scheme that matches the physical warehouse, an item master with real units of measure and pack sizes, and a counted opening stock by location. The location scheme is the one plants underestimate: aisles, racks, levels and floor areas all need labels a person can scan from where they stand. Expect to relabel, and expect the first counts to disagree with the ERP. That gap was already there; the WMS only makes it visible.

How much time does scanning add to warehouse staff?

Enough to matter: a confirmation is added at five points, receipt, put-away, pick, line feed and finished-goods drop, and in return the searching stops, which is normally the larger number. The trade only works if each confirmation is short. Time the steps yourself during a busy hour with the people who will perform them. A demo will not tell you. If a pick confirmation takes four presses on a handheld, it gets batched at the end of the shift and the record stops being live.

Does a WMS work if our warehouse Wi-Fi is patchy?

Yes, wherever coverage actually reaches, but a dropout costs you the scan and the operator repeats it once the handheld is back on the network. Cold stores, high racking and metal-clad bays are exactly where a survey done in an empty building fails, and a persistently dead aisle means scans get entered later from memory, which defeats the purpose. Survey at rack height with the racks full before you order the hardware.

How does a WMS enforce FIFO in block stacking?

It allocates by FIFO or FEFO rule and then matches a location, and the rule can be constrained by location type, so a deep block-stack location can be set to release in the order it was filled, or excluded from automatic FIFO proposals. The software cannot see which pallet is physically blocked, which is why an override has to be allowed and recorded with a reason against the lot. If those overrides are frequent, the fix is the racking or the put-away rule, and the log tells you which.

Which system owns the item master and BOM when you add a WMS?

Not the WMS. It owns location, movement and lot identity, the MES owns what happened at the operation, and the item master, bill of materials and unit of measure almost always stay in the ERP with the WMS receiving them. Agree that boundary field by field, in writing, before the interface is built: which system may create an item, and which may only read it, is the question that decides the project.
